Accessing Workflows

To start creating workflows, go to the Workflows section from the dashboard sidebar. Here you’ll see all your existing workflows and can create new ones. When you click Create workflow in the top right corner, a modal will open where you can choose between using a predefined template or starting from scratch.

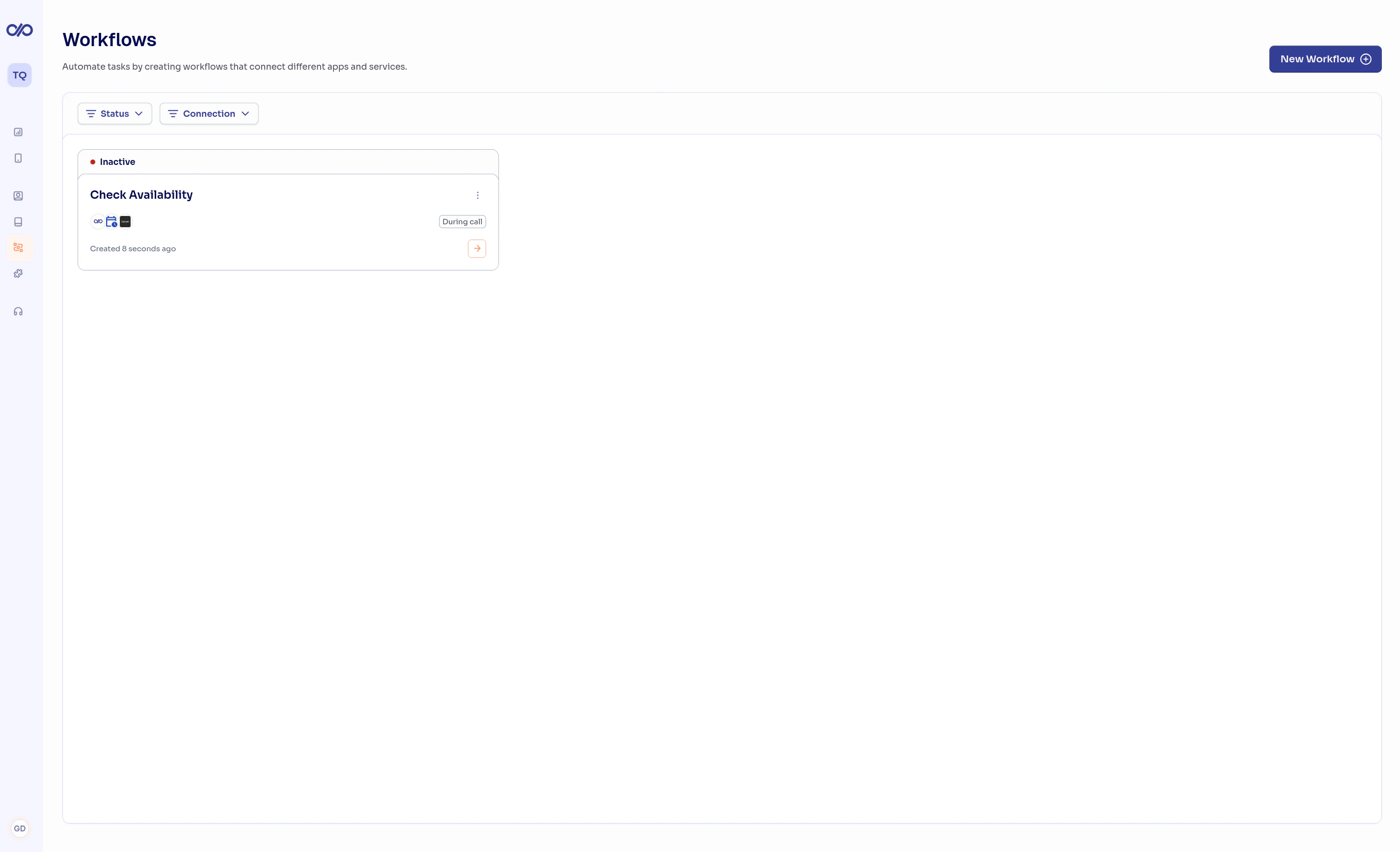

Workflow list in the dashboard

​
Creating a Workflow from Scratch

1

Create a new workflow

Click Create workflow in the top right corner. A modal will open with the available templates. To start from scratch, click the Start from scratch button at the bottom of the modal. The visual builder will open with an empty workflow.
2

Select a trigger

The first step in any workflow is the trigger: the event that starts it. Click the trigger block and select the piece you want to use.For workflows connected to Diga calls, select the Diga piece and choose one of its triggers:
  • Call Finished — For post-call workflows
  • Function Call — For during-call workflows
If you want to create a pre-call workflow, you can use any external trigger (time schedule, webhook, CRM event, etc.) and then add the Diga Make Call action.

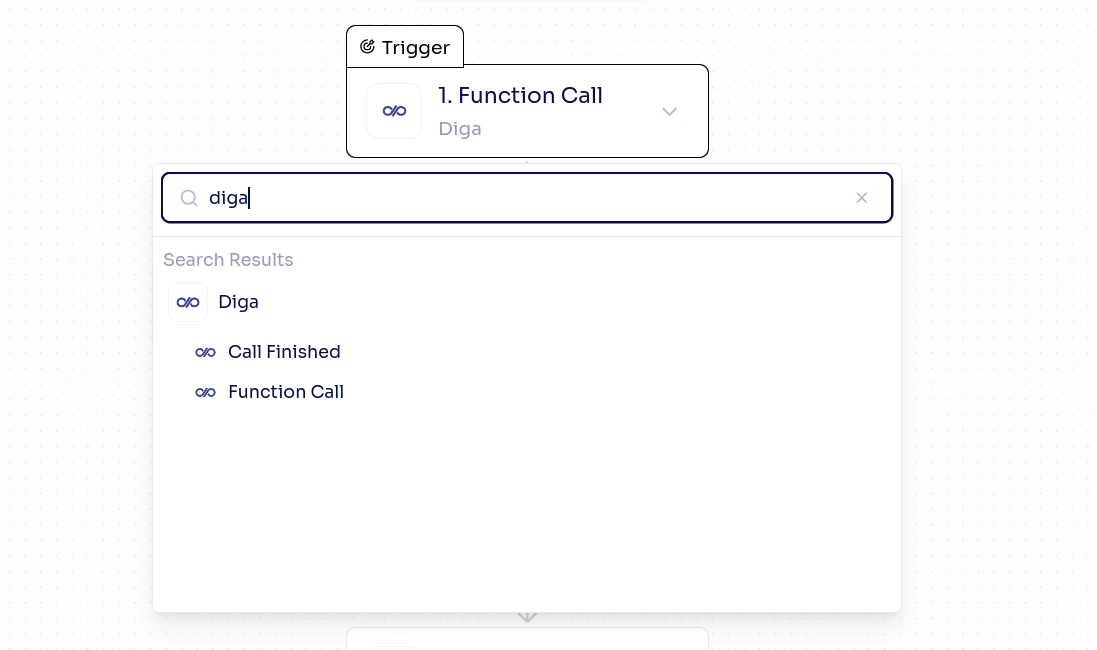

Trigger selection in the workflow builder
3

Configure the trigger

Each trigger has configuration options. For example, the Function Call trigger lets you define:
  • When the agent should execute this function (natural language description)
  • What parameters to extract from the conversation
  • Whether execution is synchronous or asynchronous
  • Whether user confirmation is required
See the Diga Piece for details on each trigger.
4

Test the trigger

Before continuing, test the trigger to generate sample data. This data will be used to configure subsequent steps. Click Test trigger and follow the instructions for your trigger type.
5

Add actions

Click the + button below the trigger to add actions. Select a piece and the specific action you want to perform.For example:
  • Google Sheets → Add row (to log call data)
  • Slack → Send message (to notify your team)
  • HTTP → Make request (to call any API)

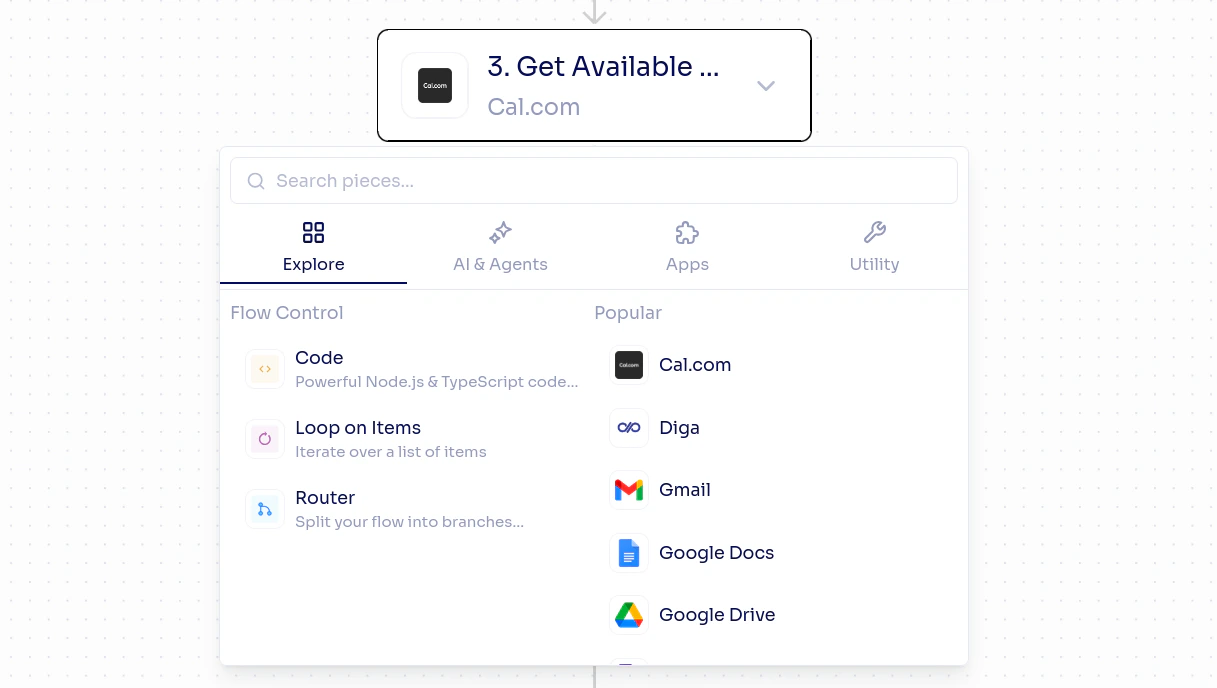

Adding actions to the workflow
6

Connect data between steps

Each action can use data from previous steps. When configuring a field, click on it to open the available data panel. You’ll see the output data from all previous steps.For example, you can insert the call transcription (from the trigger) into the body of an email (in a Gmail action).
Test each step individually to verify data flows correctly before moving to the next one.
7

Publish the workflow

When you’ve finished configuring all actions, click Publish. This creates a published version of the workflow that’s ready to execute.

​
Draft vs Published

Workflows have a versioning system with two states:

Draft

The version you’re editing. Changes in the draft don’t affect the workflow running in production. You can experiment without risk.

Published

The active version that executes when the trigger fires. Once published, this version is frozen.
This means you can keep editing a workflow while the published version continues running normally. When you’re satisfied with your changes, publish again to update the active version.
A workflow must be published before it can be enabled. If you try to enable a draft-only workflow, it won’t activate.

​
Enabling and Disabling Workflows

Once published, you can enable or disable a workflow at any time:
  • Enabled: The workflow executes when the trigger fires
  • Disabled: The workflow exists but doesn’t execute
This is useful for temporarily pausing a workflow without losing its configuration.

​
Logic and Flow Control

Beyond linear actions, you can add logic to your workflows:
Add if/else branches to execute different actions based on conditions. For example, send a different email depending on whether the call lasted more or less than 5 minutes.
Iterate over a list of items. Useful when you need to process multiple records, like sending messages to a list of contacts.
Pause workflow execution for a set time. Useful for waiting before executing a follow-up action.
If you need specific logic, you can add a JavaScript/TypeScript code step to transform data or perform custom operations.

​
Execution History

Every time a workflow executes, it’s recorded in the execution history. From here you can see:
  • The status of each execution (successful or failed)
  • The input and output data of each step
  • The exact time of each execution
  • Detailed errors if any step failed
This is very useful for debugging issues and verifying your workflows work correctly.

​
Next Steps

Use templates

Get started quickly with pre-configured workflows.

Assign to agents

Connect your workflows with agents so they execute.

The Diga piece

Learn about Diga’s triggers and actions.

Introduction to workflows

Review the fundamental workflow concepts.
